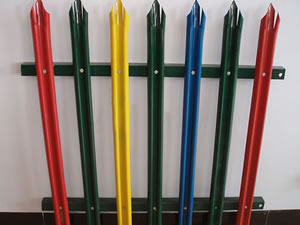

D and W Pale Palisade Fence

Palisade Fence is constructed with railing panels commonly composed with hot dipped galvanised steel tubes with pointed(single pointed or multipointed ) or round tops (round and round notched tops).


Base Material for railing panels: Hot-dip Galvanized steel Tube


Technology Procedure - Four layers surface coating treatment:


1. Hot-dip galvanizing: Extra protection against rust, corrosion;


2. Zinc phosphate: Promote the adhesion between the steel and coating film;


3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;


4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning


Picket and railing sizes commonly match each other as below:


Picket: 16X16X1.0MM Rail: 32X32X1.2MM or customized


Picket: 19X19X1.0MM Rail: 40X40X1.2MM or customized


Picket: 25X25X1.1MM Rail: 45X45X1.2MM or customized


Post: 50X50X1.5MM / 60X60X2.0MM or customized




Fence Width: 2.75m, Height: 2.5m, Pale section: "D" & "W", Thick of pale: 2.5mm


Fence Width: 2.75m, Height: 2m, Pale section: "D" & "W", Thick of pale: 2.5mm
Surface finishing: Hot galvanized, powder painted
